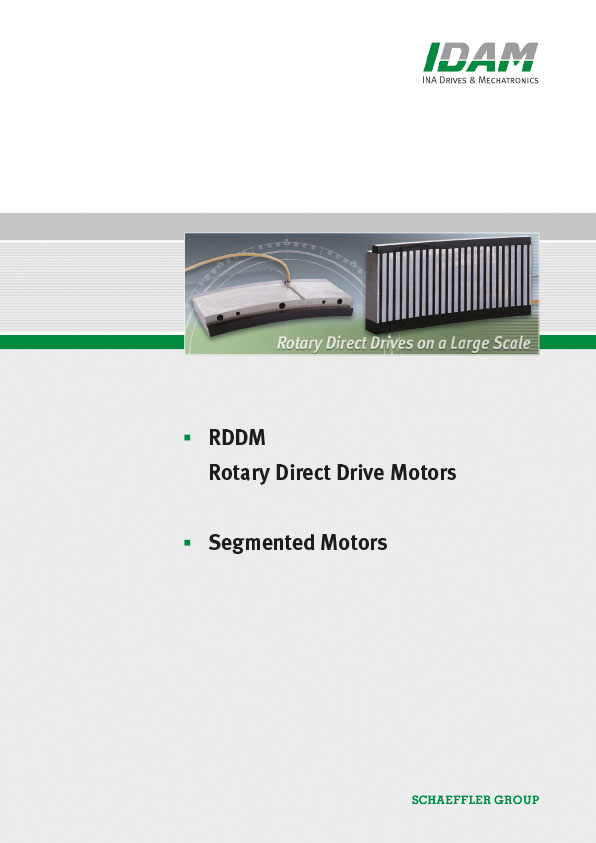

Segmented Motors

RDDM - Rotary Direct Drive Motors

Rotary direct drives with diameters of more than one meter are now also available from IDAM as segment motors. In comparison with conventional torque motors, the segment construction offers a high level of cost-effectiveness and makes a convincing case by means of high speeds and ease of maintenance. The components specific to the segment motor are the coil systems, which are combined in groups and fitted in individual motor housings. Each of the motor housings/individual segments has its own cable connector and is wired up externally in terminal boxes to the other segments. Together, all the individual segments form the complete motor (primary part).

Media category: Brochure
Date: 2011-09-12
Publisher: Schaeffler Industrial Drives AG & Co. KG
Pages: 4
Language: English
