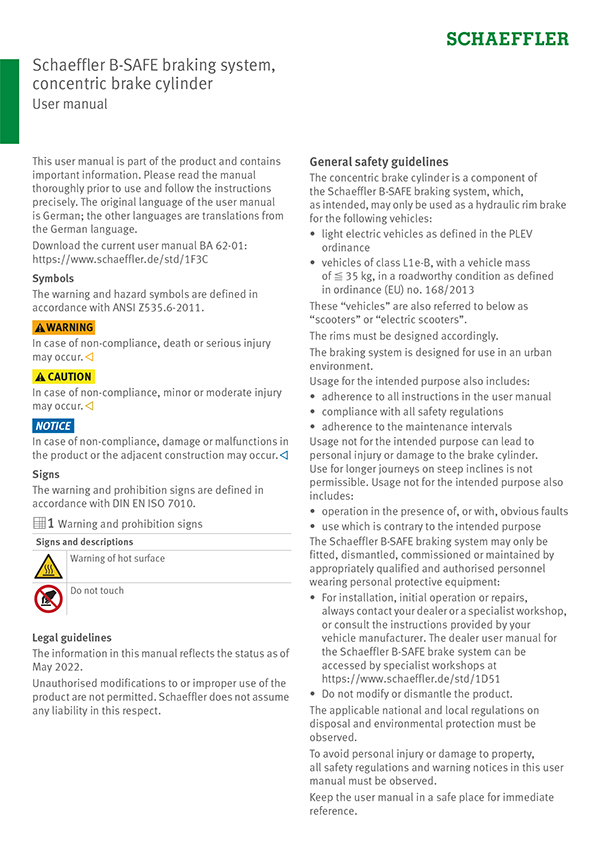

Schaeffler B-SAFE braking system, concentric brake cylinder
User manual
The concentric brake cylinder is a component of the Schaeffler B-SAFE braking system, which, as intended, may only be used as a hydraulic rim brake for the following vehicles:
• light electric vehicles as defined in the PLEV ordinance
• vehicles of class L1e-B, with a vehicle mass of ≤ 35 kg, in a roadworthy condition as defined in ordinance (EU) no. 168/2013
Media category: Manual (mounting, operation)BA 62-01
Date: 2022-05-25
Publisher: Schaeffler Automotive Buehl GmbH & Co. KG
Pages: 2
Language: English
