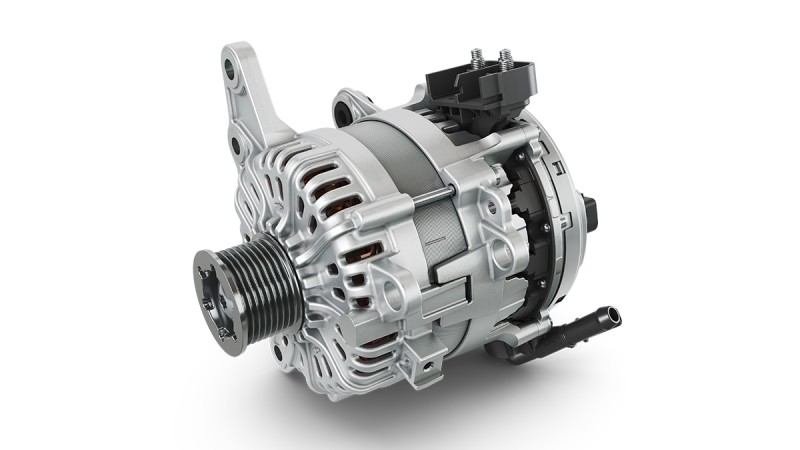

48 V Belt-Driven Starter Generator - Hybrid-Cooled
This P0 Drive is a hybrid-cooled 48 V Belt Starter Generator system with integrated inverter. It generates high CO₂e benefits together with drivability improvements via multiple operating modes (boost/torque assistance, recuperation, generator mode, ICE engine (re-) start, sailing and coasting).
Highlights
- Peak efficiency more than 90%
- Single PCB inverter without DCB and parallel MOSFETs enabling a standard manufacturing process
- All engine starts possible
Advantages
- Hybrid-cooled (air-cooled e-motor and water-cooled inverter) BSG incl. inverter
- Permanent magnet-assisted synchronous reluctance machine
- Generates CO₂e benefits and drivability improvements
- No service required
- IP2X / IP6K9K compliant
Features
Start torque
60 Nm
Peak power
10 kW (for 10 s) in motor mode, 17 kW (for 1 s) in generator mode
Max. operation speed
18,500 rpm
Weight
~10 kg / 0.003 kgm2
Ambient temperature
-40 °C up to +120 °C
Coolant temperatures
-40 °C up to +85 °C
Dimensions (w/o pulley)
Length: 165 mm
Diameter: 150 mm
Diameter: 150 mm
Functional safety
ASIL-B (ASIL-D on overvoltage)
