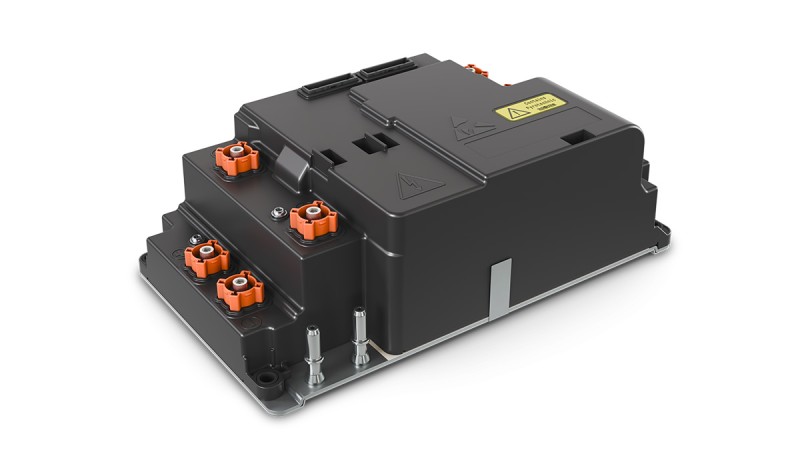

Battery Management System
The BMS consists of Battery Management Controller (BMC), Cell Supervising Circuits (CSCs) and Battery Junction Box (BJB). Functions include functional safety, determination of State of Charge (SOC) and State of Health (SOH), monitoring and balancing of the high voltage battery cells, control of internal and external actuators.
Highlights
- Adaptability to Diverse Vehicle Architectures
- Highest Safety Standards
- Advanced Monitoring and Control Functions
Advantages
- Scalable and customized solutions for 400 V / 800 V battery architectures
- Functional Safety level up to ASIL D
- Control of contactors, activation of pyrofuse, detection of crash events
- Monitoring of cell voltage, current, and temperature as well as isolation
- Prediction of thermal runaway (via EIS)
- Including Electrochemical Impedance Spectroscopy (EIS)
Features
Core
TC3xx 32-bit, 300 MHz, 6 to 16 MBytes Internal Flash
Contactor drivers
for up to 7 contactors (LS and / or LS)
Pyrofuse control
Deploys the pyro-fuse at overcurrent, crash or trigger by main microcontroller
Dedicated ICs
for high accuracy current and voltage pack measurement
Dedicated ICs
for cell monitorng and balancing
Housing
Plastic or metal; IP40 up to IP5K2
Insulation
Basic or reinforced
