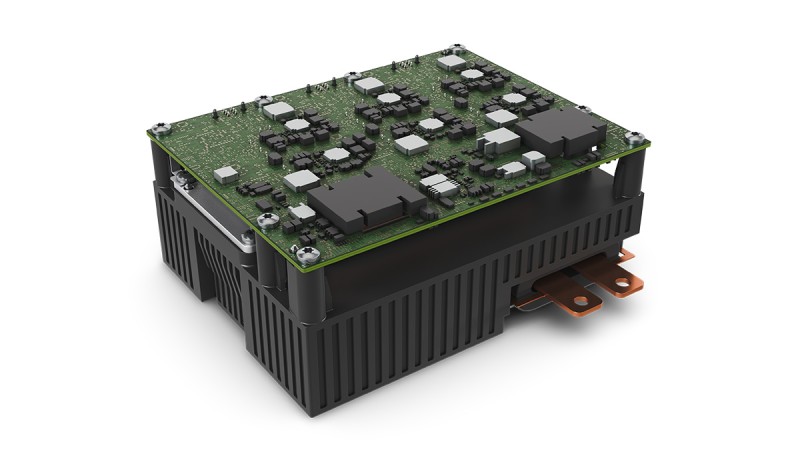

HV Inverter Brick - Overmolded
Our inverter subassembly is the essential power device building block (brick) to control the electric drive via logic signals. This compact inverter brick includes all necessary power functionalities and transistor controls. The overmolded power module provides a high efficiency and a compact design suitable for automotive drive applications, setting a standard for integrated Xin1 systems. Its design allows for adaptation and scaling to meet specific specifications, ensuring versatility.
Highlights
- Compact design and high integration capability
- High power density
- Simple interfaces
Advantages
- Modular and scalable
- Inverter control via standardized signal interfaces coming from upper microcontroller
- Small size and high-power density with overmolded power module
- High efficiency due to low thermal resistance and low stray inductance
- Scalable and flexible electronic functions out of platform
Features
Inverter Brick Type:
- Single inverter
- Overmolded power module
- DC-link capacitor
- EMC filter
- Gate drive functions: power supply, intelligent gate drive, voltage and temperature sensors
- 400 V and 800 V
- From 400 Arms to 600 Arms
- High efficiency
