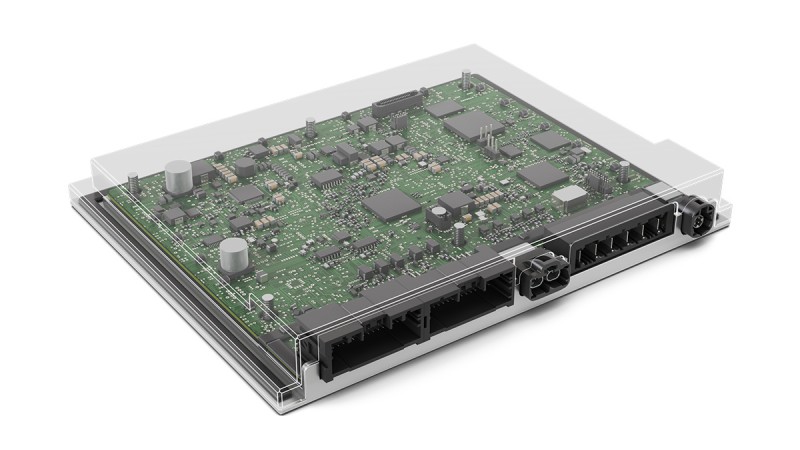

HP Master Control Unit (MCU)
The High Performance Master Control Unit (HP MCU) is part of the functional integration platform offered by Schaeffler for lateral and longitudinal acceleration, thermal and energy management, driving/charging strategy, shift-/steer-/brake-by-wire systems. Based on a microcontroller (μC), the HP MCU supports the highest level of functional safety (ASIL-D) and ensures secure communication and save operation. Integration platform for Software Defined Vehicles (SDV) with possibility to integrate microprocessor (µP) into the HP MCU.
Highlights
- High-Level of functional integration for safety and efficiency
- Modular and scalable design
- Built-2-Print proficiency
Advantages
- Central and cross domain function integration platform for highly sophisticated Software Defined Vehicle (SDV) architectures
- Classic and Adaptive AUTOSAR applications united in one unit
- Vehicle communication gateway
- Modular building blocks to shape customer specific solutions
- Core Flexibility with scalable µC/µP combinations (single/dual µC, µC + µP)
Features
Core
µC: TC4xx/U2Bxx family, µP: S32G family
Communication interfaces
FlexRay (Star), CAN-FD, LIN and SENT
Ethernet interface: Multi-port Ethernet switch with TSN and MACsec, 10 Mbit/s – 2.5Gbit/s
Ethernet interface: Multi-port Ethernet switch with TSN and MACsec, 10 Mbit/s – 2.5Gbit/s
Software
AUTOSAR Classic (flex) and Adaptive, VT SwClus and veAPP
Mechanical Hardware
Sheet metal housing, sandwich cooling, Tambient = -40 to 85 °C, IP40 to IP5K2
Connector
Modular design, up to 125 pins + 6 Ethernet ports
