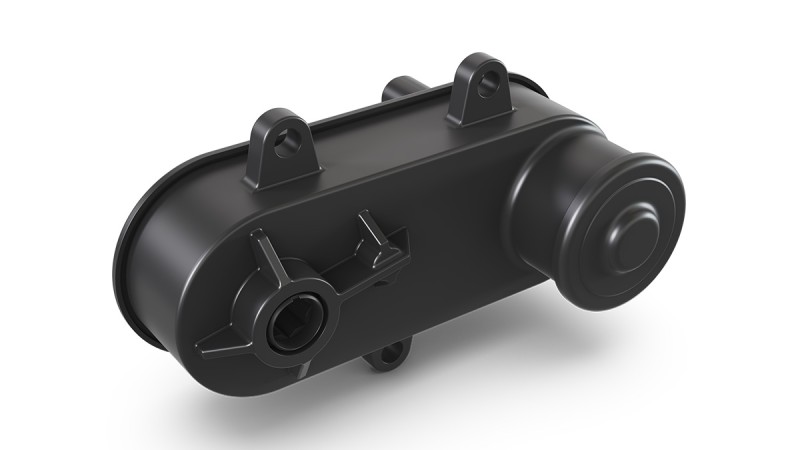

Charge Lid Actuator
Actuator for automated opening and closing of the BEV charge lid. When hands are occupied by charging cable easy hands-free opening and closing of the lid by gesture or RFID-technology. Charge lid closing will not be forgotten while storing the charging cable and starting to drive. The actuator is mounted at the charge lid module coupled with the lid mechanics. By command of an electronic, like access systems, the actuator opens and closes the lid and monitors the movement and position by integrated angular sensor.
Highlights
- Actuator functionality dedicated and designed to the charge lid needs
- Ready for all application like swan neck and slider lids
- Emergency opening always regarded to re-charge, even when electrics may fail
Advantages
- Compact, robust and cost-efficient design
- DC motor driven actuator (easy to be handled by external ECU)
- True power on sensor up to 360° angle
- Smart or non-smart version based on customer interface approach
- Multiple charge lid movement directions possible
- Multiturn capable for column slider lid approaches
- Increased torque for ice braking capabilities
- Self-locking option as variant
Features
Motor
12 V DC
Adjustment torque
2 Nm
Speed
60°/s at 2 Nm; 80 °C
Weight
150 g
Operating temperature
-40 °C up to 110 °C
Locking torque
0.15 Nm (not self locking)
3 Nm (clutch release torque, self locking)
3 Nm (clutch release torque, self locking)
