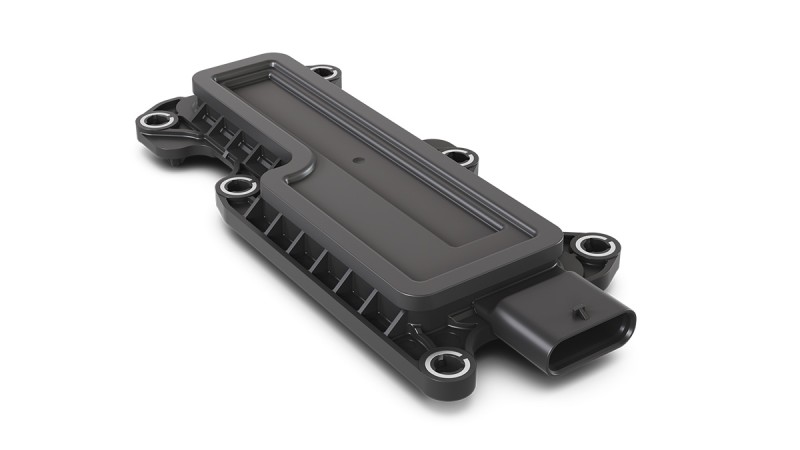

Inductive Rear Wheel Steering (IRWS) Sensor
Linear inductive position sensor for rear wheel steering system. The iRWS provides accurate positioning with the best efficiency and high safety grade.
Highlights
- Magnet-free technology insensitive to low-frequency magnetic fields
- Functional safety up-to ASIL-D
- Proprietary position chip
Advantages
- Linear sensor based on inductive technology
- Immune to low frequency magnetic fields
- Magnetless technology w/o rare earth
- Light weight
- Safety level ASIL D
Features
- Plastic housing and cover laser welded
- Connector pins soldering
- Tightness seal
- 2 complementary SENT outputs
- Total linear range: ±40 mm
- Accuracy within -4.5 mm – 4.5 mm: ±200 µm (functional)
- Temp. range: -40 °C – 120 °C
