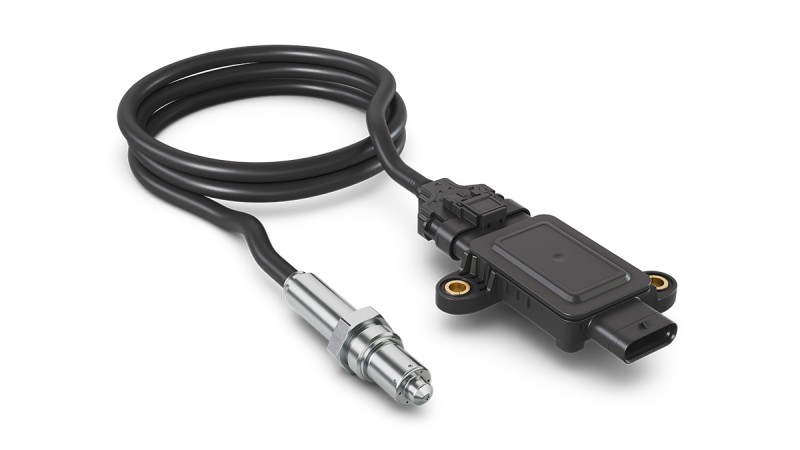

NOx Sensor - Compact Passenger Car Design
Robust and compact exhaust gas sensing enables efficient operation of exhaust gas aftertreatment systems.
Highlights
- Technology leader since 2002, with large worldwide production footprint, in each region
- Enabler for emission reduction as part of a modern ICE
- State-of-the-art signal accuracy, stability, durability, and latest security measures
Advantages
- High NOx and O2 measurement accuracy
- Real time high accuracy measurement
- Key component for all future engine management or exhaust aftertreatment systems
- Continuously improved to comply with worldwide emission standards (EU, NA, JP, CN)
- Support for implementation in applications and wide range of customizing options
Features
Measuring principle
ZrO2 based multilayer sensor with integrated heater
Output signals
NOx, λbin, λlin or O₂-conc
Supply voltage
12 V
Data link
CAN 2.0
Operating gas temp.
100 °C up to 800 °C
NOx-accuracy
±7 ppm for NO <70 ppm (±10 % above 70 ppm)
