Triple ring bearings for deflection-compensating rolls

Z-5..04.DRGL
.

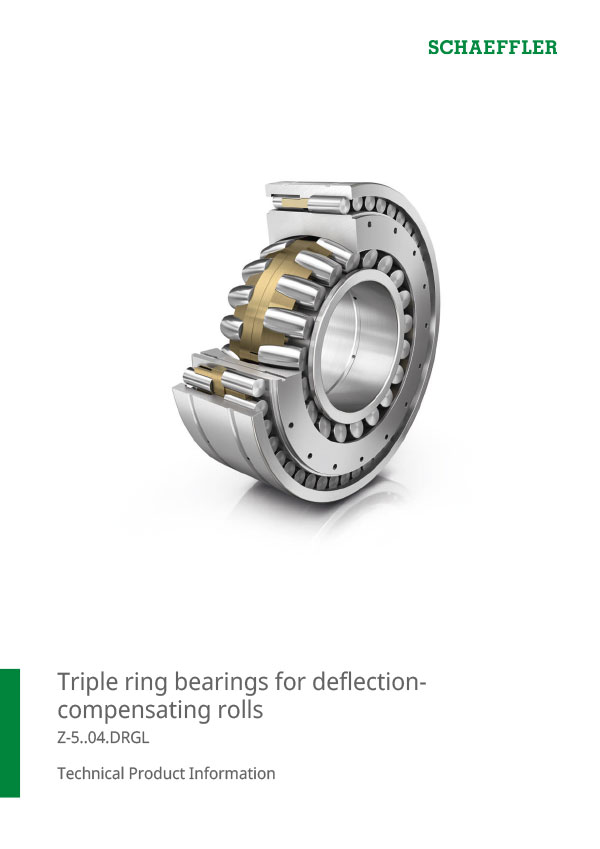

Triple ring bearings are special bearings for deflection-compensating rolls in presses and calenders within paper machines. In these rolls, the roll sleeve rotates about the stationary roll axis. Triple ring bearings are frequently installed in driven rolls. The stationary axis is supported in the bearings’ interior. The rotating intermediate ring connects the drive to the roll sleeve. The intermediate ring has holes in both end faces, allowing the drive force to be transmitted either directly or via a coupling. Depending on the type of deflection-compensating roll, 1 of 3 bearing designs is used.
